Kubenetes使用及配置模板

minikube version: v1.16.0

Pod的分类

Pod的分类:

  • 自主式Pod: Pod退出了,此类型的Pod不会被创建
  • 控制器管理的Pod:在控制器的生命周期里,始终要维持Pod的副本数目

Init容器

init c探测模板

apiVersion: v1
kind: Pod
metadata:
  name: myapp-pod
  labels:
    app: myapp
spec:
  containers:
    - name: myapp-container
      image: busybox
      command: ["sh", "-c", "echo The app is running! && sleep 3600"]
  initContainers:
    - name: init-myservice
      image: busybox
      # myservice对应svc
      command:
        [
          "sh",
          "-c",
          "until nslookup myservice;do echo waiting for myservice;sleep 2;done;",
        ]
    - name: init-mydb
      image: busybox
      # 解析mydb的主机名与svc有关如果有mydb对应的svc那么k8s内部的dns会将mydb这个svc解析为对应的ip
      command:
        [
          "sh",
          "-c",
          "until nslookup mydb;do echo waiting for mydb;sleep 2;done;",
        ]

创建以下两个svc(service的简称)

myservice

kind: Service
apiVersion: v1
metadata:
  name: myservice
spec:
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9376

mydb

kind: Service
apiVersion: v1
metadata:
  name: mydb
spec:
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9377

探针

探针是由kubelet对容器执行的定期诊断,要执行诊断,kubelet调用由容器实现的Handler。有三种类型的处理程序

  • ExecAction: 在容器内执行指定命令。如果命令退出时返回码为0则认为诊断成功
  • TCPSocketAction: 对指定端口上的容器的IP地址进行TCP检查。如果端口打开,则诊断被认为是成功的。
  • HTTPGetAction: 对执行的端口和路径上的容器IP地址执行HTTP Get请求。如果响应的状态码大于的等于200且小于400,则诊断被认为是成功的

每次探针都将获得以下三种结果之一

  • 成功: 容器通过了诊断。
  • 失败:容器未通过诊断
  • 未知:诊断失败,因此不会采取任何行动

探测方案有两种

  • LivenessProbe: 指示容器是否正在运行。如果存活探测失败,则kubectl会杀死容器,并且容器将受到其重启策略的影响。如果容器不提供存活探针,则默认状态为Success
  • ReadinessProbe: 指示容器是否准备好服务请求。如果探测失败,端点控制器将从与Pod匹配的所有Service的端点中删除该Pod的IP地址。初始延迟之前的就绪状态默认为Failure。如果容器不提供就绪探针,则默认状态为Success

探针就绪检测

ReadinessProbe-httpget

apiVersion: v1
kind: Pod
metadata:
  name: readiness-httpget-pod
  namespace: default
spec:
  containers:
    - name: readiness-httpget-container
      image: nginx:1.19.6
      imagePullPolicy: IfNotPresent
      readinessProbe:
        httpGet:
          port: 80
          path: /index1.html
        initialDelaySeconds: 1
        periodSeconds: 3

生存检测

livenessProbe-exec

apiVersion: v1
kind: Pod
metadata:
  name: liveness-exec-pod
spec:
  containers:
    - name: liveness-exec-container
      image: nginx:1.19.6
      imagePullPolicy: IfNotPresent
      # 启动时创建/temp/live文件经过60s后删除它
      # 在liveness检测时启动1分钟内文件都存在容器正常
      # 1分钟后文件不存在,liveness检测不通过容器就会被k8s杀死,pod里的容器死亡pod就会重启
      command:
        [
          "/bin/sh",
          "-c",
          "touch /tmp/live;sleep 60; rm -rf /tmp/live; sleep 3600;",
        ]
      livenessProbe:
        exec:
          # 测试文件是否存在,如果存在返回值为0表正常
          command: ["test", "-e", "/tmp/live"]
        initialDelaySeconds: 1
        periodSeconds: 3

livenessProbe-httpget

apiVersion: v1
kind: Pod
metadata:
  name: liveness-httpget-pod
spec:
  containers:
    - name: liveness-httpget-container
      image: nginx:1.19.6
      imagePullPolicy: IfNotPresent
      ports:
        - name: http
          containerPort: 80
      livenessProbe:
        httpGet:
          port: http
          path: /index.html
        initialDelaySeconds: 1
        periodSeconds: 3

livenessProbe-tcp

apiVersion: v1
kind: Pod
metadata:
  name: liveness-tcp-pod
spec:
  containers:
    - name: nginx
      image: nginx:1.19.6
      imagePullPolicy: IfNotPresent
      livenessProbe:
        tcpSocket:
          # 监听80端口是否可连接
          port: 80
        timeoutSeconds: 1
        initialDelaySeconds: 5
        periodSeconds: 3

Initcreadinessliveness可以相互配合使用

启动退出动作

apiVersion: v1
kind: Pod
metadata:
  name: lifecycle-demo
spec:
  containers:
    - name: nginx
      image: nginx:1.19.6
      imagePullPolicy: IfNotPresent
      lifecycle:
        # 启动之后
        postStart:
          exec:
            command:
              [
                "/bin/sh",
                "-c",
                "echo Hello from the postStart handler > /usr/share/message.txt",
              ]
        # 停止之前可以料理后事
        preStop:
          exec:
            command: ["/bin/sh", "-c", "echo preStop死前料理后事"]

Status状态有以下几种值

  • Pending(挂起): Pod已被Kubernetes系统接受,但有一个或多个容器镜像尚未创建。等待时间包括调度Pod的时间和通过网络下载镜像的时间

  • Running(运行中):该Pod已经绑定到了一个节点上,Pod中所有的容器都已被创建。至少有一个容器正在运行。或正处于启动或重启状态

  • Succeeded(成功):Pod中的所有容器都被成功终止,并且不会再重启

  • Failed(失败):Pod中的所有容器都已终止了,并且至少有一个容器是因为失败终止。也就是说,容器以非0状态退出或者被系统终止

  • Unknown(未知):因为某些原因无法取得Pod的状态,通常是因为与Pod所在主机通信失败

Replica Sets

ReplicaSet(RS)是Replication Controller(RC)的升级版本。ReplicaSetReplication Controller之间的唯一区别是对选择器的支持。ReplicaSet支持labels user guide中描述的set-based选择器要求, 而Replication Controller仅支持equality-based的选择器要求。

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: frontend
spec:
  # 指定rs副本数
  replicas: 3
  selector:
    matchLabels:
      tier: frontend
  template:
    metadata:
      labels:
        tier: frontend
    spec:
      containers:
        - name: nginx
          image: nginx:1.19.6
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

RS与Deployment的关联


Deployment

Deployment为PodReplica Set(升级版的 Replication Controller)提供声明式更新。

你只需要在 Deployment 中描述您想要的目标状态是什么,Deployment controller 就会帮您将 Pod 和ReplicaSet 的实际状态改变到您的目标状态。您可以定义一个全新的 Deployment 来创建 ReplicaSet 或者删除已有的 Deployment 并创建一个新的来替换。

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:1.18
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

执行

# record参数会记录执行过程
kubectl apply -f deployment-demo.yaml --record

Deployment使用申明式定义方法所以用apply创建

查看运行状态

$ kubectl get deployment

NAME               READY   UP-TO-DATE   AVAILABLE   AGE
nginx-deployment   3/3     3            3           3m37s

创建Deployment会被创建RS可以通过以下命令验证

$ kubectl get rs

NAME                          DESIRED   CURRENT   READY   AGE
nginx-deployment-76ccf9dd9d   3         3         3       4m14s

扩容

$ kubectl scale deployment nginx-deployment --replicas=4

更新镜像

$ kubectl set image deployment/nginx-deployment nginx=nginx:1.19

执行过程,会看到多出一个RS

$ kubectl set image deployment/nginx-deployment nginx=nginx:1.19
deployment.apps/nginx-deployment image updated
$ kubectl get deployment
NAME               READY   UP-TO-DATE   AVAILABLE   AGE
nginx-deployment   3/3     1            3           105s
$ kubectl get rs
NAME                          DESIRED   CURRENT   READY   AGE
nginx-deployment-67dfd6c8f9   3         3         3       111s
nginx-deployment-7cf55fb7bb   1         1         0       14s
$ kubectl get rs
NAME                          DESIRED   CURRENT   READY   AGE
nginx-deployment-67dfd6c8f9   0         0         0       2m
nginx-deployment-7cf55fb7bb   3         3         3       23

回滚(默认回滚到上一个版本)

$ kubectl rollout undo deployment/nginx-deployment

其他常用命令

# 查看回滚状态
$ kubectl rollout status deployment/nginx-deployment
# 查看回滚历史
$ kubectl rollout history deployment/nginx-deployment
# 回退到指定版本通过--to-reversion指定
$ kubectl rollout undo deployment/nginx-deployment --to-reversion=2
# 暂停deployment的更新
$ kubectl rollout pause deployment/nginx-deployment

DemonSet

apiVersion: apps/v1
kind: DaemonSet
metadata:
  # step1
  name: daemonset-example
  labels:
    app: daemonset-demo
spec:
  selector:
    matchLabels:
      # 与step1保持一致
      name: daemonset-example
  template:
    metadata:
      labels:
        name: daemonset-example
    spec:
      containers:
        - name: nginx
          image: nginx:1.19.6
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

Job

apiVersion: batch/v1
kind: Job
metadata:
  name: pi
spec:
  template:
    metadata:
      name: pi
    spec:
      containers:
        - name: pi-container
          image: perl
          # 计算圆周率
          command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"]
      restartPolicy: Never

查看输出日志就能看到2000位的圆周率输出

$ kubectl logs job/pi

CronJob

声明式使用apply创建

创建job的操作应该是幂等的

apiVersion: batch/v1beta1
kind: CronJob
metadata:
  name: hello
spec:
  # 分 时 日 月 周
  schedule: "*/1 * * * *"
  jobTemplate:
    # job
    spec:
      template:
        # pod
        spec:
          containers:
            - name: hello
              image: busybox:1.32
              args:
                - /bin/sh
                - -c
                - date;echo Hello from the Kubernetes cluster
          restartPolicy: Never

查看cronjob

$ kubectl get cronjob

SVC

Deployment与SVC绑定演示

创建Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      release: stabel
  template:
    metadata:
      labels:
        app: myapp
        release: stabel
        env: test
    spec:
      containers:
        - name: myapp
          image: wangyanglinux/myapp:v2
          imagePullPolicy: IfNotPresent
          ports:
            - name: http
              containerPort: 80

创建Service

apiVersion: v1
kind: Service
metadata:
  name: myapp
spec:
  type: ClusterIP
  # 通过标签匹配pod
  selector:
    app: myapp
    release: stabel
  ports:
    - name: http
      port: 80
      targetPort: 80

HeadlessService

有时不需要或不想要负载均衡以及单独的Service IP。遇到这种情况,可以通过指定Cluster IP(spec.clusterIP)的值为None来创建Headless Service。这类Service并不会分配Cluster IP, kube-proxy不会处理他们,而且平台也不会为他们进行负载均衡和路由

apiVersion: v1
kind: Service
metadata:
  name: myapp-headless
  namespace: default
spec:
  selector:
    app: myapp
  clusterIP: "None"
  ports:
    - port: 80
      targetPort: 80

创建svc后查看输出像这样

$ kubectl get svc
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
kubernetes       ClusterIP   10.96.0.1       <none>        443/TCP   23h
myapp-headless   ClusterIP   None            <none>        80/TCP    26s

SVC一旦创建成功会写入到coredns中去,写入格式为svc名称.所属名称空间名.集群域名可以获取K8S的dns地址

# 如果访问不到 进入minkube容器内部访问 执行: minikube ssh
$ kubectl get pod -n kube-system -o wide

输出像这样

NAME                               READY   STATUS    RESTARTS   AGE   IP             NODE       NOMINATED NODE   READINESS GATES
coredns-54d67798b7-5trfs           1/1     Running   1          23h   172.17.0.2     minikube   <none>           <none>
etcd-minikube                      1/1     Running   1          23h   192.168.49.2   minikube   <none>           <none>
kube-apiserver-minikube            1/1     Running   1          23h   192.168.49.2   minikube   <none>           <none>
kube-controller-manager-minikube   1/1     Running   1          23h   192.168.49.2   minikube   <none>           <none>
kube-proxy-zm25c                   1/1     Running   1          23h   192.168.49.2   minikube   <none>           <none>
kube-scheduler-minikube            1/1     Running   1          23h   192.168.49.2   minikube   <none>           <none>
storage-provisioner                1/1     Running   2          23h   192.168.49.2   minikube   <none>           <none>

可以看到coredns

# 通过coredns ip进行svc解析
dig -t A myapp-headless.default.svc.cluster.local. @172.17.0.2

输出结果像这样

docker@minikube:~$ dig -t A myapp-headless.default.svc.cluster.local. @172.17.0.2

; <<>> DiG 9.16.1-Ubuntu <<>> -t A myapp-headless.default.svc.cluster.local. @172.17.0.2
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 34601
;; flags: qr aa rd; QUERY: 1, ANSWER: 3, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: 1a5ce669b9476b67 (echoed)
;; QUESTION SECTION:
;myapp-headless.default.svc.cluster.local. IN A

;; ANSWER SECTION:
myapp-headless.default.svc.cluster.local. 30 IN	A 172.17.0.5
myapp-headless.default.svc.cluster.local. 30 IN	A 172.17.0.4
myapp-headless.default.svc.cluster.local. 30 IN	A 172.17.0.3

;; Query time: 3 msec
;; SERVER: 172.17.0.2#53(172.17.0.2)
;; WHEN: Wed Jan 20 07:55:14 UTC 2021
;; MSG SIZE  rcvd: 249

NodePort

将服务暴露给外部用户,nodePort的原理在于在node上开了一个端口,将该端口的流量导入到kube-proxy,然后由kube-proxy进一步导给对应的pod

apiVersion: v1
kind: Service
metadata:
  name: myapp
  namespace: default
spec:
  type: NodePort
  selector:
    app: myapp
  ports:
    - name: http
      port: 80
      targetPort: 80

LoadBalancer

LoadBalancer和NodePort其实是同一种方式,区别在于LoadBalancer比NodePort多了一步,就是可以调用cloud provider去创建LB来向节点导流

ExternalName

这种类型的Service通过返回CNAME和它的值,可以将服务映射到externalName字段的内容例如:k8s.guqing.xyz。ExternalName Service是Service的特例,它没有selector,也没有定义任何的端口Endpoint。相反的,对于运行在集群外部的服务,它通过返回该外部服务的别名这种方式提供服务

kind: Service
apiVersion: v1
metadata:
  name: my-service-1
  namespace: default
spec:
  type: ExternalName
  externalName: my.database.example.com

当查询主机my-service.default.svc.cluster.local(格式为:SVC_NAME.NAMESPACE.svc.cluster.local)时,集群的DNS服务将返回一个值 my.database.example.com的CNAME记录。访问这个服务的工作方式和其他相同,唯一不同的是重定向发生在DNS层,而且不会进行代理或转发

创建svc如下

$ kubectl get svc

NAME           TYPE           CLUSTER-IP      EXTERNAL-IP               PORT(S)        AGE
kubernetes     ClusterIP      10.96.0.1       <none>                    443/TCP        3d
my-service-1   ExternalName   <none>          my.database.example.com   <none>         3s

解析过程如下

docker@minikube:~$ dig -t A my-service-1.default.svc.cluster.local. @172.17.0.2

; <<>> DiG 9.16.1-Ubuntu <<>> -t A my-service-1.default.svc.cluster.local. @172.17.0.2
;; global options: +cmd
;; Got answer:
;; WARNING: .local is reserved for Multicast DNS
;; You are currently testing what happens when an mDNS query is leaked to DNS
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 24122
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: 9ba11bfc7ec49fd9 (echoed)
;; QUESTION SECTION:
;my-service-1.default.svc.cluster.local.	IN A

;; ANSWER SECTION:
my-service-1.default.svc.cluster.local.	30 IN CNAME my.database.example.com.

;; Query time: 1007 msec
;; SERVER: 172.17.0.2#53(172.17.0.2)
;; WHEN: Fri Jan 22 08:53:19 UTC 2021
;; MSG SIZE  rcvd: 154

Ingress-Nginx

github地址

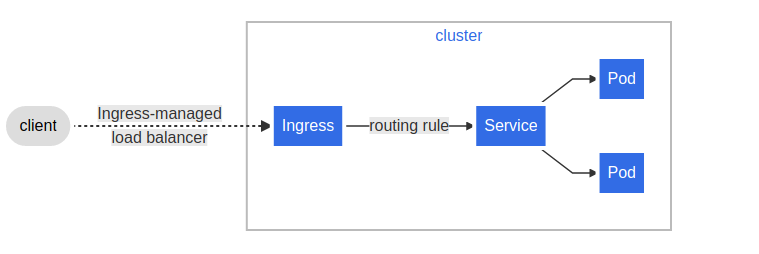

Here is a simple example where an Ingress sends all its traffic to one Service:

image-20210122171022997

minikube安装ingress-nginx

$ minikube addons enable ingress

k8s安装参考官网

$ kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.43.0/deploy/static/provider/baremetal/deploy.yaml

验证安装

$ kubectl get pods -n ingress-nginx

Ingress HTTP代理访问

deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-dm
spec:
  replicas: 2
  selector:
    matchLabels:
      name: nginx
  template:
    metadata:
      labels:
        name: nginx
    spec:
      containers:
        - name: nginx
          image: wangyanglinux/myapp:v1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

Service

apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
spec:
  selector:
    name: nginx
  ports:
    - port: 80
      targetPort: 80
      protocol: TCP

Ingress

官方文档

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-test
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
    - host: www1.guqing.xyz
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: nginx-svc
                port:
                  number: 80

执行过程

$ minikube addons enable ingress
* The 'ingress' addon is enabled

$ kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.43.0/deploy/static/provider/baremetal/deploy.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created

$ kubectl get pods -n ingress-nginx
NAME                                        READY   STATUS              RESTARTS   AGE
ingress-nginx-admission-create-58mz2        0/1     ContainerCreating   0          11s
ingress-nginx-admission-patch-s9c2c         0/1     ContainerCreating   0          11s
ingress-nginx-controller-697b57b496-hj9cb   0/1     ContainerCreating   0          12s
# 创建deployment
$ kubectl apply -f deployment.yaml
# 创建svc
$ kubectl apply -f svc.yaml
service/nginx-svc created

$ kubectl get svc
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP   4m47s
nginx-svc    ClusterIP   10.103.242.217   <none>        80/TCP    2m41s
# 创建ingress
$ kubectl apply -f ingress.yaml

$ kubectl get svc -n ingress-nginx
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller             NodePort    10.111.21.135   <none>        80:30793/TCP,443:30261/TCP   7m10s
ingress-nginx-controller-admission   ClusterIP   10.102.127.39   <none>        443/TCP                      7m10s
# 查看访问地址
$ minikube service -n ingress-nginx ingress-nginx-controller --url
http://172.17.0.16:30162
http://172.17.0.16:30747

$ vim /etc/hosts
# 添加记录指向ingress域名
# 172.17.0.16 www1.guqing.xyz

$ curl www1.guqing.xyz
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

Ingress域名代理访问示例

以下步骤将在K8S提供的Minikube终端下运行 Launch Terminal

minikube version: v1.8.1

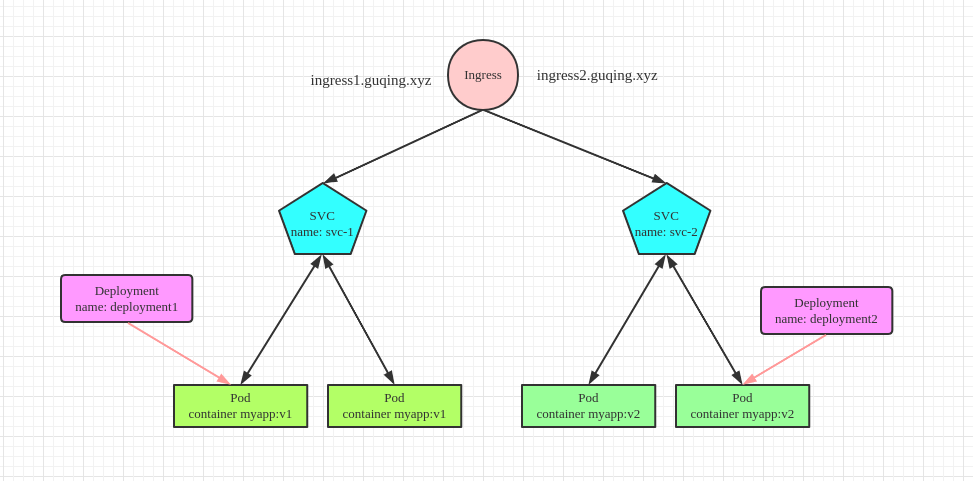

结构图示如下:

image-20210125182937226

  1. 启动ingress插件
$ minikube addons enable ingress
* The 'ingress' addon is enabled

$ kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.43.0/deploy/static/provider/baremetal/deploy.yaml

namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
service/ingress-nginx-controller-admission created
service/ingress-nginx-controller created
deployment.apps/ingress-nginx-controller created
  1. 创建两个deployment和两个svc分别对应

deployment-svc-1.yaml标签为name=nginx1,容器名nginx1并与svc-1绑定

apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment1
spec:
  replicas: 2
  selector:
    matchLabels:
      name: nginx1
  template:
    metadata:
      labels:
        name: nginx1
    spec:
      containers:
        - name: nginx1
          # 使用v1版本
          image: wangyanglinux/myapp:v1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: svc-1
spec:
  selector:
    name: nginx1
  ports:
    - port: 80
      targetPort: 80
      protocol: TCP

deployment-svc-2.yaml标签为name=nginx2,容器名nginx2并与svc-2绑定

apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment2
spec:
  replicas: 2
  selector:
    matchLabels:
      name: nginx2
  template:
    metadata:
      labels:
        name: nginx2
    spec:
      containers:
        - name: nginx2
          # 使用v2版本
          image: wangyanglinux/myapp:v2
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: svc-2
spec:
  selector:
    name: nginx2
  ports:
    - port: 80
      targetPort: 80
      protocol: TCP

创建

$ kubectl apply -f deployment-svc-1.yaml
$ kubectl apply -f deployment-svc-2.yaml

验证是否符合预期

$ kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1     <none>        443/TCP   31m
svc-1        ClusterIP   10.98.45.49   <none>        80/TCP    23m
svc-2        ClusterIP   10.98.55.46   <none>        80/TCP    20m

# 访问svc-1
$ curl 10.98.45.49
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

# 访问svc-2
$ curl 10.98.55.46
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
  1. 创建Ingress规则(ingress-rules.yaml),创建ingress-1svc-1绑定,ingress-2svc-2绑定
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-1
spec:
  rules:
    - host: ingress1.guqing.xyz
      http:
        paths:
          - path: /
            backend:
              serviceName: svc-1
              servicePort: 80
---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-2
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
    - host: ingress2.guqing.xyz
      http:
        paths:
          - path: /
            backend:
              serviceName: svc-2
              servicePort: 80

创建

$ kubectl apply -f ingress-rules.yaml

进入到ingress容器中查看nginx配置

$ kubectl get pods -n ingress-nginx
NAME                                        READY   STATUS      RESTARTS   AGE
ingress-nginx-admission-create-fw2r6        0/1     Completed   0          38m
ingress-nginx-admission-patch-rsh8f         0/1     Completed   0          38m
ingress-nginx-controller-697b57b496-r8vpk   1/1     Running     0          38m
$ kubectl exec ingress-nginx-controller-697b57b496-r8vpk -n ingress-nginx -it -- /bin/bash
bash-5.0$ cat /etc/nginx/nginx.conf

此时会看到nginx的配置文件中自动被配置了ingress-rules.yaml中设置的两个host对应的域名

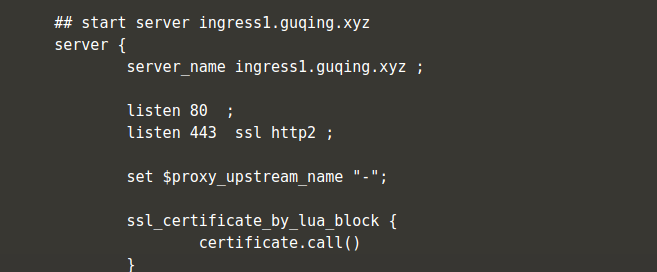

image-20210125155816426

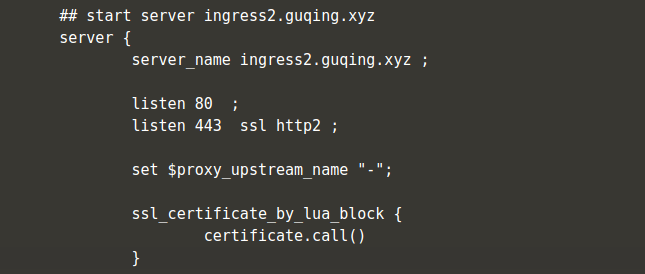

image-20210125160026174

  1. 配置hosts文件模拟访问域名
$ kubectl get ingress
NAME        HOSTS                 ADDRESS       PORTS   AGE
ingress-1   ingress1.guqing.xyz   172.17.0.33   80      4m1s
ingress-2   ingress2.guqing.xyz   172.17.0.33   80      4m1s

$ vim /etc/hosts

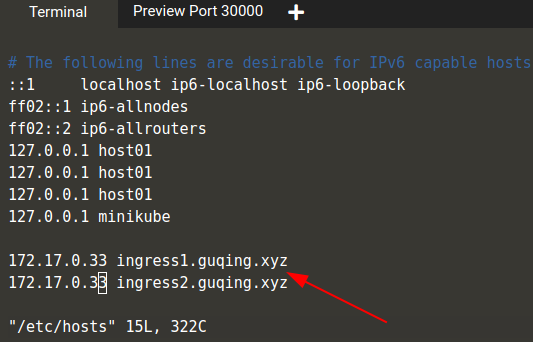

image-20210125164146482

查看访问端口

$ kubectl get svc -n ingress-nginx
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller             NodePort    10.110.79.62    <none>        80:31394/TCP,443:30567/TCP   4m1s
ingress-nginx-controller-admission   ClusterIP   10.110.32.131   <none>        443/TCP                      4m1s

访问

$ curl ingress1.guqing.xyz:31394
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

$ curl ingress2.guqing.xyz:31394
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>

Ingress HTTPS代理访问

创建证书及cert存储方式

$ open ssl req -x500 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=nginxsvc/O=nginxsvc"

$ kubectl create secret tls tls-secret --key tls.crt

Ingress配置示例

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-3
spec:
  tls:
    - hosts:
        - foo.bar.com
      # 与tls指定的名称一致
      secretName: tls-secret
  rules:
    - host: foo.bar.com
      http:
        paths:
          - path: /
            backend:
              serviceName: svc-3
              servicePort: 80

Nginx Basic Auth

$ yum -y install httpd
# 创建文件为auth 用户名为foo
$ htpasswd -c auth foo
$ kubectl create secret generic basic-auth --form-file=auth

创建ingress yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-with-auth
  annotations:
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: "Authentication Required - foo"
spec:
  rules:
    - host: foo2.bar.com
      http:
        paths:
          - path: /
            backend:
              serviceName: svc-4
              servicePort: 80

Nginx重写

名称描述
nginx.ingress.kubernets.io/rewrite-target必须重定向流量到目标URL
nginx.ingress.kubernetes.io/ssl-redirect指定位置部分是否仅可访问SSL(当Ingress包含证书时默认为True)布尔
nginx.ingress.kubernetes.io/force-ssl-redirect即使Ingress未启用TLS,也强制重定向到HTTPS布尔
nginx.ingress.kubernetes.io/app-root定义Controller必须重定向的应用程序根,如果它在/上下文中
nginx.ingress.kubernetes.io/use-regex指示Ingress上定义的路径是否使用正则表达式布尔

示例

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-rewrite
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: http://foo.bar.com:31795/hostname.html
spec:
  rules:
    - host: foo3.bar.com
      http:
        paths:
          - path: /
            backend:
              serviceName: svc-5
              servicePort: 80

存储机制

Config Map

ConfigMap功能在Kubernetes1.2版本中引入,许多应用程序会从配置文件、命令行参数或环境变量中读取配置信息。ConfigMap API给我们提供了向容器中注入配置信息的机制,ConfigMap可以被用来保存单个属性,也可以用来保存整个配置文件或者JSON二进制大对象

ConfigMap的创建

1.使用目录创建
$ ls docs/user-guide/configmap/kubectl/
game.properties
ui.properties

$ cat docs/user-guide/config/kubectl/game.properties
enemies=aliens
lives=3
enemies.cheat=true
enemies.cheat.level=noGoodRotten
secret.code.passphrase=UUDDLRLRBABAS
secret.code.allowed=true
secret.code.lives=30

$ cat docs/user-guide/configmap/kubectl/ui.properties
color.good=purple
color.bad=yellow
allow.textmode=true
how.nice.to.look=fairlyNice

$ kubectl create configmap game-config --from-file=docs/user-guide/configmap/kubectl

--from-file指定在目录下的所有文件都会被用在ConfigMap里面创建一个键值对,键的名称就是文件名,值就是文件内容

$ kubectl get configmap
NAME               DATA   AGE
game-config        2      30s
kube-root-ca.crt   1      7d22h

查看具体信息内容像这样(cmconfigmap的简称)

$ kubectl get cm game-config -o yaml
apiVersion: v1
data:
  game.properties: |
    enemies=aliens
    lives=3
    enemies.cheat=true
    enemies.cheat.level=noGoodRotten
    secret.code.passphrase=UUDDLRLRBABAS
    secret.code.allowed=true
    secret.code.lives=30
  ui.properties: |
    color.good=purple
    color.bad=yellow
    allow.textmode=true
    how.nice.to.look=fairlyNice
kind: ConfigMap
metadata:
  creationTimestamp: "2021-01-27T06:57:37Z"
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:data:
        .: {}
        f:game.properties: {}
        f:ui.properties: {}
    manager: kubectl-create
    operation: Update
    time: "2021-01-27T06:57:37Z"
  name: game-config
  namespace: default
  resourceVersion: "513536"
  uid: 74e9713b-8b5f-4512-a348-8691eb5afaca
2. 使用文件创建

只要指定为一个文件就可以从单个文件中创建ConfigMap

$ kubectl create configmap game-config-2 --from-file=docs/user-guide/configmap/kubectl/game.properties

$ kubectl get configmaps game-config-2 -o yaml

--from-file这个参数可以使用多次,例如可以使用两次分别指定上个示例中两个配置文件,效果就和指定整个目录一样

3.使用字面值创建

使用文字值创建,利用--from-literal参数传递配置信息,该参数可以使用多次,格式如下:

$ kubctl create configmap special-config --from-literal=special.how=very --from-literal=special.type=charm

$ kubectl get configmaps special-config -o yaml

Pod中使用ConfigMap

1.使用ConfigMap来替代环境变量
apiVersion: v1
kind: ConfigMap
metadata:
  name: special-config
  namespace: default
data:
  special.how: very
  special.type: charm
apiVersion: v1
kind: ConfigMap
metadata:
  name: env-config
  namespace: default
data:
  log_level: INFO
apiVersion: v1
kind: Pod
metadata:
  name: dapi-test-pod
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      command: ["/bin/sh", "-c", "env"]
      env:
        - name: SPECIAL_LEVEL_KEY
          valueFrom:
            configMapKeyRef:
              name: special-config
              key: special.how
        - name: SPECIAL_TYPE_KEY
          valueFrom:
            configMapKeyRef:
              name: special-config
              key: special.type
      envFrom:
        - configMapRef:
            name: env-config
  restartPolicy: Never

查看pod日志效果如下

$ kubectl logs dapi-test-pod
KUBERNETES_SERVICE_PORT=443
KUBERNETES_PORT=tcp://10.96.0.1:443
NGINX_SVC_SERVICE_HOST=10.102.29.151
HOSTNAME=dapi-test-pod
HOME=/root
NGINX_SVC_PORT=tcp://10.102.29.151:80
NGINX_SVC_SERVICE_PORT=80
PKG_RELEASE=1~buster
# special.type=charm
SPECIAL_TYPE_KEY=charm
NGINX_SVC_PORT_80_TCP_ADDR=10.102.29.151
NGINX_SVC_PORT_80_TCP_PORT=80
NGINX_SVC_PORT_80_TCP_PROTO=tcp
KUBERNETES_PORT_443_TCP_ADDR=10.96.0.1
NGINX_VERSION=1.19.6
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
KUBERNETES_PORT_443_TCP_PORT=443
NJS_VERSION=0.5.0
KUBERNETES_PORT_443_TCP_PROTO=tcp
NGINX_SVC_PORT_80_TCP=tcp://10.102.29.151:80
# special.how=very
SPECIAL_LEVEL_KEY=very
# log_level=INFO
log_level=INFO
KUBERNETES_SERVICE_PORT_HTTPS=443
KUBERNETES_PORT_443_TCP=tcp://10.96.0.1:443
KUBERNETES_SERVICE_HOST=10.96.0.1
PWD=/
2.用ConfigMap设置命令行参数
apiVersion: v1
kind: ConfigMap
metadata:
  name: special-config
  namespace: default
data:
  special.how: very
  special.type: charm
apiVersion: v1
kind: Pod
metadata:
  name: configmap-test-pod
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      command:
        ["/bin/sh", "-c", "echo $(SPECIAL_LEVEL_KEY) $(SPECIAL_TYPE_KEY)"]
      env:
        - name: SPECIAL_LEVEL_KEY
          valueFrom:
            configMapKeyRef:
              name: special-config
              key: special.how
        - name: SPECIAL_TYPE_KEY
          valueFrom:
            configMapKeyRef:
              name: special-config
              key: special.type
  restartPolicy: Never

查看日志效果如下

$ kubectl logs configmap-test-pod
very charm
3.通过数据卷插件使用ConfigMap
apiVersion: v1
kind: ConfigMap
metadata:
  name: special-config
  namespace: default
data:
  special.how: very
  special.type: charm

在数据卷里面使用这个ConfigMap,有不同的选项。最基本的就是将文件填入数据卷,在这个文件中,键就是文件名,键值就是文件内容

apiVersion: v1
kind: Pod
metadata:
  name: configmap-volume-pod
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      command:
        ["/bin/sh", "-c", "ls /etc/config/ && cat /etc/config/special.how"]
      volumeMounts:
        - name: config-volume
          mountPath: /etc/config
  volumes:
    - name: config-volume
      configMap:
        name: special-config
  restartPolicy: Never

查看pod日志如下

$ kubectl logs  configmap-volume-pod
# 两个文件
special.how
special.type
# special.how内容
very

ConfigMap热更新

apiVersion: v1
kind: ConfigMap
metadata:
  name: log-config
  namespace: default
data:
  log_level: INFO
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      run: my-nginx
  template:
    metadata:
      labels:
        run: my-nginx
    spec:
      containers:
        - name: my-nginx
          image: nginx:1.19.6
          ports:
            - containerPort: 80
          volumeMounts:
            - name: config-volume
              mountPath: /etc/config
      volumes:
        - name: config-volume
          configMap:
            name: log-config

创建后查看内容

$ kubectl get pods
NAME                        READY   STATUS      RESTARTS   AGE
my-nginx-854969cf95-fmmp9   1/1     Running     0          23s
$ kubectl exec my-nginx-854969cf95-fmmp9 -it -- cat /etc/config/log_level
# 结果为INFO
INFO

此时修改ConfigMap

$ kubectl edit configmap log-config

修改log_level的值未DEBUG等待约10s后再次查看环境变量的值

$ kubectl exec my-nginx-854969cf95-fmmp9 -icat /etc/config/log_level
# 值变为了DEBUG
DEBUG

Secret

Secret解决了密码、token、密钥等名干数据的配置问题,而不需要把这些敏感数据暴露到镜像或者Pod Spec中。Secret可以以Volume或者环境变量的方式使用

Secret有三种类型:

  • Service Account: 用来访问Kubernetes API, 由Kubernetes自动创建,并且会自动挂载到Pod的/run/secrets/kubernetes.io/serviceaccount目录中
  • Opaque: base64编码格式的Secret,用来存储密码、密钥等
  • kubernetes.io/dockerconfigjson: 用来存储私有docker registry的认证信息

Service Account

Service Account 用来访问Kubernetes API, 由Kubernetes自动创建,并且会自动挂载到Pod的/run/secrets/kubernetes.io/serviceaccount目录中

Opaque Secret

  1. 创建说明

Opaque类型的数据是一个map类型,要求value是base64编码格式

$ echo -n "admin" | base64
YWRtaW4=
$ echo -n "1f2d1e2e67df" | base64
MWYyZDFlMmU2N2Rm

secrets.yaml

apiVersion: v1
kind: Secret
metadata:
  name: mysecret
type: Opaque
data:
  username: YWRTAW4=
  password: MWYyZDFlMmU2N2Rm

执行过程

$ vim secrets.yaml
# 填充上述 secrets.yaml内容
$ kubectl apply -f secrets.yaml
secret/mysecret created
$ kubectl get secret
NAME                  TYPE                                  DATA   AGE
default-token-kxgcl   kubernetes.io/service-account-token   3      8d
mysecret              Opaque

可以看到默认有一个default-token,k8s会为每一个 namepace下创建一个SA(Service Account)用于Pod挂载

  1. 使用方式

方式一:将secret挂载到Volume中

apiVersion: v1
kind: Pod
metadata:
  name: secret-test
  labels:
    name: secret-test
spec:
  volumes:
    - name: secrets
      secret:
        secretName: mysecret
  containers:
    - name: db
      image: nginx:1.19.6
      volumeMounts:
        - name: secrets
          mountPath: /etc/secrets
          readOnly: true

执行示例

$ kubectl get pods
NAME                        READY   STATUS      RESTARTS   AGE
secret-test                 1/1     Running     0          6s
$ kubectl exec secret-test -it -- /bin/sh
> ls
password  username
> cat username
admin
> cat password
1f2d1e2e67df

方式二:将Secret导入到环境变量中

apiVersion: apps/v1
kind: Deployment
metadata:
  name: pod-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: pod-deployment
  template:
    metadata:
      labels:
        app: pod-deployment
    spec:
      containers:
        - name: pod-1
          image: nginx:1.19.6
          ports:
            - containerPort: 80
          env:
            - name: TEST_USER
              valueFrom:
                secretKeyRef:
                  name: mysecret
                  key: username
            - name: TEST_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: mysecret
                  key: password

执行示例:

$ kubectl apply -f pod-deployment.yaml
deployment.apps/pod-deployment created
$ kubectl get pods
NAME                             READY   STATUS    RESTARTS   AGE
pod-deployment-6b988699d-ql596   1/1     Running   0          3s
pod-deployment-6b988699d-vwtcw   1/1     Running   0          3s
$ kubectl exec pod-deployment-6b988699d-ql596 -it -- /bin/sh
> echo $TEST_USER
admin
> echo $TEST_PASSWORD
1f2d1e2e67df

kubernetes.io/dockerconfigjson

使用Kubeclt创建docker registry认证的secret

$ kubectl create secret docker-registry myregistrykey --docker-server=DOCKER_REGISTRY_SERVER --docker-username=DOCKERUSER --docker-password=DOCKER_PASSWORD --docker-email=DOCKER_EMAIL

secret "myregistrykey" created

在创建Pod的时候,通过imagePullSecrets来引用刚创建的myregistrykey

apiVersion: v1
kind: Pod
metadata:
  name: foo
spec:
  containers:
    - name: foo
      # 私有镜像
      image: guching/nginx:1.19.6
  imagePullSecrets:
    - name: myregistrykey

使用hub.docker.com仓库示例

$ kubectl create secret docker-registry myregistrykey --docker-username=guching --docker-password=xxx
secret/myregistrykey created
# foo-pod.yaml内容如上
$ kubectl create -f foo-pod.yaml
pod/foo created
$ kubectl get pods -w
NAME                             READY   STATUS              RESTARTS   AGE
foo                              0/1     ContainerCreating   0          3s
# 失败了一次
foo                              0/1     ErrImagePull        0          34s
# 运行成功
foo                              1/1     Running   0          2m36s

Volume

官网文档

容器磁盘上的文件的生命周期是短暂的,这就使得在容器中运行重要应用时会出现一些问题。首先,当容器崩溃时,kubelet会重启它,但是容器中的文件将丢失——容器以干净的状态(镜像最初的状态)重新启动,其次,在Pod中同时运行多个容器时,这些容器之间通常需要共享文件。Kubernetes中的Volume抽象就很好的解决了这些问题。

背景

Kubernetes中的卷有明确的寿命——与封装它的Pod相同。所以,卷的生命比Pod中的所有容器都长,当这个容器重启时数据仍然得以保存。当然,当Pod不再存在时,卷将不复存在。也许更重要的是,Kubernetes支持多种类型的卷,Pod可以同时使用任意数量的卷

卷的类型

Kubernetes支持以下类型的卷:

  • awsElasticBlockStoreazureDiskazureFilecephfscsidownwardAPIemptyDir
  • fcflockergcePersistentDiskgitRepoglusterfshostPathiscsinfs
  • persistentVolumeClaimprojectedportworxVolumequobyterbdscaleIOsecret
  • storageosvsphereVolume

emptyDir

当Pod被分配给节点时,首先会创建emptyDir卷,并且只要该POd在该节点上运行,该卷就会存在。正如卷的名字所述,它最初是空的。Pod中容器可以读取和写入emptyDir卷中的相同文件,尽管该卷可以挂载到每个容器中的相同或不同路径上。当出于任何原因从节点中删除Pod时,emptyDir中的数据将被永久删除(注:容器崩溃时不会从节点中移除Pod,因此emptyDir卷中的数据在容器崩溃时是安全的)

emptyDir的用法有:

  • 暂存空间,例如用于基于磁盘的合并排序
  • 用作长时间计算崩溃恢复时的检查点
  • Web服务器容器提供数据时,保存内容管理器容器提取的文件
apiVersion: v1
kind: Pod
metadata:
  name: test-pod
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      volumeMounts:
        - mountPath: /cache
          # 挂载cache-volume卷
          name: cache-volume
  volumes:
    - name: cache-volume
      emptyDir: {}

不同的容器可以使用不同的mountPath指向同一个卷例如

apiVersion: v1
kind: Pod
metadata:
  name: test-pod
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      volumeMounts:
        - mountPath: /cache
          name: cache-volume
    - name: busybox
      image: busybox:1.32
      imagePullPolicy: IfNotPresent
      command: ["/bin/sh", "-c", "sleep 3600s"]
      volumeMounts:
        - mountPath: /test
          name: cache-volume
  volumes:
    - name: cache-volume
      emptyDir: {}

如上test-container容器的卷路径为cache,而busybox容器的卷路径为test都是指向同一个卷cache-volume内容是共享的只是路径不同

hostPath

hostPath卷将主机节点的文件系统中的文件或目录挂载到集群中

hostPath的用途如下:

  • 运行需要访问Docker内部的容器,使用/var/lib/dockerhostPath
  • 在容器中运行cAdvisor使用/dev/cgroupshostPath

除了所需要的path属性之外,用户还可以为hostPath卷指定type

行为
空白字符串(默认)用于向后兼容,这意味着在挂载hostPath卷之前不会执行任何检查
DirectoryOrCreate如果在给定的路径上没有任何东西存在,那么将根据需要在那里创建一个空目录,权限设置为755,与Kubelet具有相同的组和所有权
Directory给定的路径下必须存在目录
FileOrCreate如果在给定的路径上没有任何东西存在,那么会根据需要创建一个空文件,权限设置为0644,与Kubelet具有相同的组和所有权
File给定的路径下必须存在文件
Socket给定的路径下必须存在UNIX套接字
CharDevice给定的路径下必须存在字符设备
BlockDevice给定的路径下必须存在块设备

使用这种卷类型时请注意:

  • 由于每个节点上的文件都不同,具有相同的配置(例如从PodTemplate创建)的Pod在不同节点上的行为可能会有所不同
  • 当Kubernetes按照计划添加资源感知调度时,将无法考虑hostPath使用的资源
  • 在底层主机上创建的文件或目录只能由root写入。你需要在特权容器中以root身份运行进程,或修改主机上的文件权限以便写入hostPath卷
apiVersion: v1
kind: Pod
metadata:
  name: test-pod-1
spec:
  containers:
    - name: test-container
      image: nginx:1.19.6
      volumeMounts:
        - mountPath: /cache
          name: cache-volume
  volumes:
    - name: cache-volume
      hostPath:
        # 主机中的目录路径
        path: /data
        # 类型,可选值
        type: Directory

注意:如果使用minikube driver=docker方式执行则hostPath.pathminikube容器中

Persistent Volume

Persistent Volume简称PV,是由管理员设置的存储,它是集群的一部分,就像节点是集群中的资源一样,PV也是集群中的资源。PV是Volume之类的卷插件,但具有独立于使用PV的Pod的生命周期。此API对象包含存储实现的细节,即NFS、ISCSI或特定与云供应商的存储系统

PersistentVolumesClaim

PersistentVolumesClaim是用户存储的请求,简称PVC。它与Pod相似,Pod消耗节点资源,PVC消耗PV资源。Pod可以请求特定级别的资源(CPU和内存)。声明可以请求特定的大小和访问模式(例如,可以读/写一次或只读多次模式挂载)

静态PV

集群管理员创建一些PV,他们带有可供集群用户使用的实际存储的细节。他们存在与Kubernetes API中,可以用于消费

动态

当管理员创建的静态PV都不匹配用户的PersistentVolumeClaim时,集群可能会尝试动态的为PVC创建卷。此配置基于StorageClasses:PVC必须请求[存储类],并且管理员必须创建并配置该类才能进行动态创建。声明该类为""可以有效的禁用其动态配置

要器用基于存储级别的动态存储配置,集群管理员需要器用API server上的DefaultStorageClass[准入控制器]。例如,通过确保DefaultStorageClass位于API Server组建的--admission-control标志,使用逗号分隔

44

开往-友链接力
版权所有ICP证:滇ICP备20002798号-1
